M2M Accessories and Additional Products

Accessories suitable for our range of Wireless Modems, Gateways and Routers. These items are normally available from stock to speed product evaluation and field-trials and deployment. Further products and variations are available to meet specific deployment requirements, enquire for further details.

For our range of antennas please visit the CTi Antennas page and 2J Antennas page (each open in new tab)

Accessories

Cinterion® Mains PSU (UK)

Gemalto Mains PSU imageA UK Mains PSU adapter with a D.C. plug suitable for all Gemalto Cellular Terminal-Modems.

The plug-top supply has interchangeable adaptors for use in different countries and is supplied with 3-Pin adapter suitable for use in the UK & Ireland. Enquire for versions suitable for other regions.Gemalto PSU Connector image

Input voltage range is 100 to 240V A.C.

Output is 12V D.C. @ 1.3A max

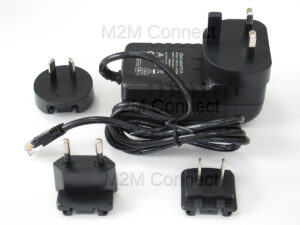

Cinterion Universal Mains PSU

Image of Mains Power Supply for Cinterion Gemalto and Siemens Modems with universal plug adapters for each region UK EU Australia and USAA Univerasl Mains PSU adapter with a D.C. plug suitable for all Cinterion (Gemalto) Cellular Modem-Terminals.

The plug-top supply has interchangeable adaptors for use in different countries and is supplied with adapters suitable for use in the UK & Ireland, EU, USA and Australia.Gemalto PSU Connector image

Input voltage range is 100 to 240V A.C. 50/60Hz

Output is 12V D.C. @ 1.5A max - RJ12 connector

Cinterion® D.C. Power Cable

DC power cable imageD.C. Power cable for use with all Gemalto Cellular Terminal-Modems.

The RJ12 plug has all six wires connected allowing control of the Modem via the Power-Down and Ignition-IN signals. The function of each coloured wire is labelled.

Note that this cable uses Stranded wire 18 x 0,10mm and not the thinner 7 core cable used in telephone patch leads. Cable length is approx. 1.5 meters. Further information available here: DC power cable datasheet

Mains In-Line PSU for Cinterion® Modem-Terminals

Main in-line PSUA Mains in-line PSU with mechanical fixing lugs and a D.C. plug suitable for all Gemalto Cellular Terminal-Modems.

The power supply has a captive mains cable terminated with tinned wires suitable for direct connection to a mains supply (fused outlet).

The DC connector is wired with IGN signal active so that Gemalto Terminals will In-line PSU caseautomatically start when power is first supplied.

Input voltage range is 100 to 240V A.C.

Output is 12V D.C. @ 1.0A max

Weidmuller Connectors for Gemalto Modem-Terminals

8 and 12-Pin connectors suWeidmuller Connectors Imageitable for the GPIO interface sockets found on Gemalto BGS5T, EHS5T, EHS6T-USB and EHS6T-LAN Modem-Terminals.

Very easy to use - simply insert a prepared wire and you're done. To release, each signal wire has an integrated push button. Rated for wire size range 0.14 - 1.5 mm² / AWG 26 - AWG 16

Gemalto Modem-Terminals support a variety of serial interfaces, analog input with reference out as well as GPIO signals, so these connectors are very useful for Java and other applications which extend the application and operation of the wireless devices.

Robustel Mains PSU

A Manufacturer supplied mains PSU Robustel UK Mains PSU imagesuitable for all Robustel Gateways and Routers.

The D.C. output cable is crimp terminated ready for attaching D.C. power connectors supplied with each Robustel Device..

Plug-top design allows interchangeable adaptors for use in different countries/regions. Supplied with single adapter or a set of 4 covering most of the world.

Input range: 100 to 240V A.C. Output is 12V D.C. @ 2.0A max

Our part numbers: Rob-ACC-E011005 (UK & Ireland 3-pin) & Rob-ACC-E011008 (EU 2-pin)

Robustel DIN-Rail Mount Kit

Din-Rail Mount image Robustel A 35 mm DIN-Rail Mount bracket designed for all Robustel Gateways and Routers.

The bracket is attached via 3 threaded holes in the devices. Four screws are supplied in each kit.

Our part number: ROB-ACC-E015031

Robustel Wall Mounting (all models except R2000)

Wall mount bracket Wall mount BracketWall Mount bracket designed for Robustel Gateways and Routers (except the R2000 Router which requires a different style bracket).

The bracket is attached via 3 threaded holes in the device. Four screws are supplied in each kit.

Our part number: ROB-ACC-E015025

Robustel Wall Mounting (For R2000 & R2000-DUAL)

R2000 Bracket imageR2000 Bracket dimsWall Mount brackets designed for Robustel R2000 & R2000-DUAL Routers.

Each bracket is attached via 2 supplied screw and threaded holes in the device.

Our part number: ROB-ACC-E015039


DB9 to 9-Pin Terminal Block

A 9-Pin D-type Male connecter to DB9 interface adapter imageterminal C001406 pins imageblock adapter for easy access to individual signals on a device DB9 interface.

Very useful for accessing RS485 or additional GPIO signals carried over the DB9. The silk screen pin designations relate to Robustel Gateways though it can be used for any device.

Our part number: ROB-ACC-C001406

Robustel TPH6700 – IP67 Housing

Robuustel IP67 Housing imageThe Typhoon6700 range of housings are specifically created for Robustel R2000, R2000-Ent, R3000 & R3000-Lite industrial Routers.

Each IP67 rated housing is supplied with the Robustel Router pre-integrated with external access to all connections. Suitable for wall or Pole mounting.

Various power-supply options allow for renewable energy powered systems, AC & DC power and support for P-o-E feature, depending upon the specific Router.

TPH6700 Top View image
Downloads

TPH6700 Data Sheet

TPH6700 Installation and Configuration Guide

Contact us for:

  • Applications support and information



Other Products from our suppliers

Coherent Modbus Pulse Counter

The Coherent Modbus Pulse Counter is an innovative Modbus pulse counter imagedevice for metering applications where a record of pulse count data needs to be kept from multiple meters. The device has 8 pulse-count input channels which can be connected to meters over more than 250 meters of cable.

Pulses from the connected meters are counted, sorted into interval data and buffered in the internal flash memory for retrieval via the Modbus interface. In the event of a power failure an internal rechargeable Lithium-Ion battery continues to operate the device for up to 500 Hours, reading and storing pulses as configured so that no readings or data are lost.

The device is intended for high reliability applications, operating 24/7. Once configured the Modbus Pulse Counter operates autonomously recording pulse counts periodically ready for reading over the RS485 interface.

General Features
  • Data-logging of all input count values at configurable sampling rate with time-stamping
  • Internal battery back-up provides continuous logging during the event of a power failure
  • Large internal memory
  • Power Supply Input voltage: 12 V D.C.
  • Operating Temperature Range: -30 to + 70 ″C
Interfaces
  • Power and Modbus communications: Two 4-pin 5.08mm plug in terminal block connectors on upper face
  • Power and comms interface can easily be 'daisy-chained' to extend number of supported meters
  • One 12-pin 5.08mm plug in terminal block for 8 pulse inputs and 4 x 0 Volt connections
Other features
  • Easy to configure via Modbus interface
  • Flexible Modbus address and data-rate, supports reprogramming over Modbus interface
  • Enclosure: 4-Module wide M36-DIN standard case. 70 (W) x 66 (D) x 110 (H) mm
  • CE certified ready for deployment in UK and EU
Downloads

Coherent Modbus Pulsecounter Datasheet v1_0

Contact us for:

  • Applications support and information
