2J Antennas

Below are the most popular antennas in our range manufactured by 2J. Most are available from stock with the indicated standard cable lengths and SMA(male) connectors, suitable for all our wireless devices. For other types of antenna, alternative cable lengths or connectors please make contact for advice and quotations.

2J 2J3024M Magnetic-Mount 4G/LTE Antenna

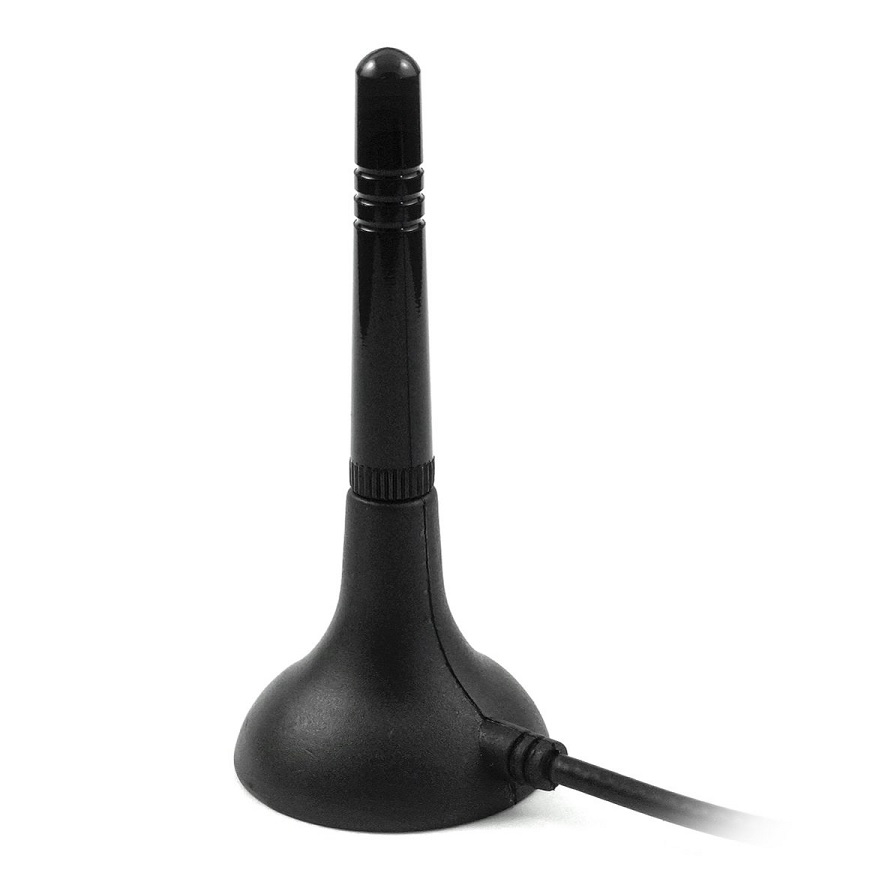

Image of 2J-Antenna 2J3024 Magnetic-Mount antenna

The 2J3024M Mag-Mouint antenna for GSM 2G/3G & 4G LTE applications is designed for mounting on horizonal metallic surfaces. This new antenna has been specifically designed for 4G LTE applications where fast and simple installation are requried at least cost.

Our standard versions available from stock include 3.0 meters of RG174 Coaxial cable terminated with an SMA-male, suitable for connection to all of our wireless products. Further options are available on request.

Standard version available with 3.0 Meters RG174 coax cable terminated with SMA(male) connector.

SMA(male) connectors are suitable for Cellular antenna connections on all products shown on our web-site.

Downloads

Contact us for availability with alternative connectors or cable lengths.

2J 2J7724Ba Body Mount High-Efficiency 4G/LTE Antenna

Image of the highly efficient 2J7724Ba Dome antenna for body mouting on non-metalic surfces

The 2J7724B 'Dome' style antenna for GSM 2G/3G & 4G MIMO applications is a high-performance design specifically for marginal signal conditions or where regional certifications require a higher efficiency design. The through-hole screw mounting offers several options for mounting & cable routing in body mount applications on a horizonal ground-plane. With compact dimensions the antenna is highly suitable for 4G LTE applications where either single or twin-element (Main + Diversity) is required.

A compact Ground Plane Dependent LTE antenna with small footprint. As well as IP69 it is IK09 rated for mechanical impacts. As well as meeting necessary efficiency ratings for approvals (e.g. in USA) the improved performance can help in UK deployments where reception is known to marginal.

Available with single or twin-elements. See product specification for further information and options.

Standard version is the twin-element 'MIMO' version - 2J7764Ba with two 300mm or 2.5 Meters LL-100 coax cables terminated with SMA(male) connectors. Alternative version - 2J7764B with single 4G LTE antenna element and custom length coax cable available to order.

SMA(male) connectors are suitable for Cellular antenna connections on all products shown on our web-site.

Downloads

Contact us for availability with alternative connectors or cable lengths.

Image of the underside of 2J7724Ba antenna showing cable and physical mounting  Image of the underside of 2J7724Ba antenna showing cable exit  Image of the underside of 2J7724Ba antenna showing physical mounting  Image of the cables and their identification for 2J7724Ba antenna

2J 2J6024Ba Body Mount 4G/LTE Antenna

Image of the 2J Antennas 2J6024Ba 4G LTE MIMO Antenna with two internal elements

The 2J6024B 'Puck' style antenna for GSM 2G/3G & 4G MIMO applications is designed for through-hole body mounting on horizonal surfaces. The antenna is highly suitable for 4G LTE applications where either single or twin-element (Main + Diversity) is required. Despite compact dimensions the antenna does not requiring a ground plane making it very suitable for mounting on non-metallic surfaces.

This antenna is one of the most compact Ground Plane Independent LTE antennas - it's the same size as many 3G 'pucks' despite having twin 4G elements. It is highly suitable for both new and upgrading installations to 4G without a metallic ground-plane & where space is limited

Available with single or twin-elements. See product specification for further information and options.

Standard version is the twin-element 'MIMO' version - 2J6024Ba with two 300mm or 2.5 Meters LL-100 coax cables terminated with SMA(male) connectors. Alternative version - 2J6024B with single 4G LTE antenna element and custom length coax cable available to order.

SMA(male) connectors are suitable for Cellular antenna connections on all products shown on our web-site.

Downloads

Contact us for availability with alternative connectors or cable lengths.
Image of underside of 2J6024Ba antenna showing coaxial cables and connectors  Image of underside of 2J6024Ba antenna showing threaded mounting post Image of underside of 2J6024Ba antenna showing adhesive pad Image of underside of 2J6024Ba antenna showing cable identification

2J 2J7624B Body Mount 4G/LTE Antenna

Image of 2J7624 Dome Antenna

The 2J7624B 'Dome' style antenna for GSM 2G/3G & 4G LTE applications is designed for through-hole body mounting on horizonal surfaces. The antenna is highly suitable for cost-demanding 4G LTE applications. The single element design makes for a very compact size antenna whilst not requiring a ground plane, making it very suitable for mounting on non-metallic surfaces.

This antenna is our most compact Ground Plane Independent LTE design and is highly suitable for both new and upgrading applications to 4G LTE networks where no metallic ground-plane is available & space is limited.

See product specification for further information on options.

The standard version of the 2J7624 we stock has 1.5 Meters of coax cable (manufacturers' minimum length for this antenna) and an SMA(male) connector suitable for connection to all products on our web-site.

Downloads

Contact us for availability with alternative connectors or longer cable lengths.

Side view of 2J7624B Dome antenna with coaxial cable and connector   Image of 2J7624B Dome antenna threaded mounting and coaxial cable exit

2J 2J7024BA Cellular MIMO Dome Antenna

Image of 4G LTE Dome antenna for external body mount  applications

The 2J7024BA is a compact heavy duty 4G LTE antenna designed for wide range of industrial applications. It is intended for mounting on both internal and external horizontal surfaces.

The antenna housing is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69 standard for high pressure and hot water ingress and requires no additional ground plane. The mounting is made with specific anti-rotation mounting system.

See product specification for further information & other supply options.

We normally stock a standard version of the 2J7024BA with either 50cm or 5.0 Meters of coax cable SMA(male) connectors suitable for connection to 4G modems, gateways & routers our web-site.

Downloads

Contact us for availability with alternative connectors or longer cable lengths.

Image of 2J-Antennas 2J7024BA LTE/4G Dome Antenna Base showing the underside sealImage of 2J-Antennas 2J7024BA LTE 4G Dome with the optional mounting base and pole mount adaptorsImage of the underside of the 2J7024 LTE Dome Antenna with optional base and pole mount adaptorImage of 2J7024BA coax cables with SMA connectors and identifiers

Wi-Fi, Bluetooth & ISM band antennas

2J 2J2102K -B07H Wall Mount Dual-band Wi-Fi / ISM Antenna

Image of External Wall mounted dual-frequency antenna for Wi-Fi and ISM band applications

The 2J2102K ISM-Band Wall mount antenna is specifed for WiFi, BT, ZigBee and ISM applications. It is intended for mounting on both internal and external vertical surfaces.

The Dual-band, Omni-Directional design operates on 2.4GHz and 5.0 GHz frequencies and requires no additional ground plane.

The standard version is supplied with 5 meters of RG58 coaxial cable terminated with a reverse polarity SMA male connector.

See product specification for further information & other options.

The standard version of the 2J2102K we offer is with 5.0 Meters of coax cable and Reverse-Polarity SMA(male) connector suitable for connection to Wi-Fi / Bluetooth interface connectors onn all products on our web-site.

Downloads

Contact us for availability with alternative connectors or longer cable lengths.
