Robustel Products

Robustel Technologies focus on dependable connectivity solutions for  Machine to Machine, Internet of Things and specialist industrial applications. Robustel provide ready-to-use devices, customisable Router solutions and cloud-management & VPN platforms which enable connectivity for small, medium and corporate scale enterprises.

Click here for details of RCMS – Robustel’s Cloud based Device Management System & VPN service.

Gateways and Routers

Robustel R2010 – 4G/LTE Twin Ethernet + Serial & GPIO

Image of the R2010 router including antennas supplied with the deviceThe Robustel R2010 is a versatile Industrial Cellular 4G Gateway with dual Ethernet ports, dual SIM capability and a range of advanced functions for mission critical IoT or M2M applications.

The two Ethernet ports (one with optional 802.3at PoE input) plus Wireless-LAN 802.11 b/g/n are highly configurable & together with the serial and GPIOs bring connectivity to applications requiring flexible, high performance & extendability.

With security features including Firewalls and multiple VPNs to deliver secure, dependable connectivity, the R2010 is suitable for demanding applications in industrial monitoring, retail, commerce, and signage where cost of ownership is paramount.

R2010 includes Robustel’s RCMS free router monitoring service allowing users to see location, data usage, signal strength, current network and much more detail for all of their routers quickly and simply.

General Features
  • Power Input voltage range: 9.0 to 36 V D.C. via screw-locked 2-pin 3.5 mm female socket. 48 to 57 V. D.C. via Ethernet PD / PoE (optional, 802.3at PD)
  • Solid Metal case construction, Operating Temperature Range: -35 to + 75 ″C
Interfaces
  • Two 10/100Mbs Ethernet ports, configurable as bridged or independent networks
  • Ethernet 1 functions as LAN, Eth 2 as LAN, or WAN
  • RS232 or RS485 Serial Port (software configurable) + 1x Digital Input + 1x Digital Output
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer
  • VPN Tunnels: IPsec/OpenVPN//GRE/WireGuard + others can be uploaded
  • Auto reboot - Periodic/Timed/via SMS
  • Flexible Management methods: Web/CLI/SNMP/SMS & RCMS cloud platform
  • Approval & Certification: CE, RoHS 2.0, RCM, WEEE
Downloads

R2010 Datasheet

R2010 User guide

Contact us for:

  • SDK and Applications information
  • Approvals & Network certification information
Image of the R2010 Router showing the front panel connectors for all interfaces. Close up image of the R2010 routers' power supply and serial and digital input and output connections and connectors Image of the rear panel of the R2010 router showing antennas and SIM card holders slot with secure cover

Robustel R2011 – 4G/LTE 4+1 Ethernet Port Industrial Router

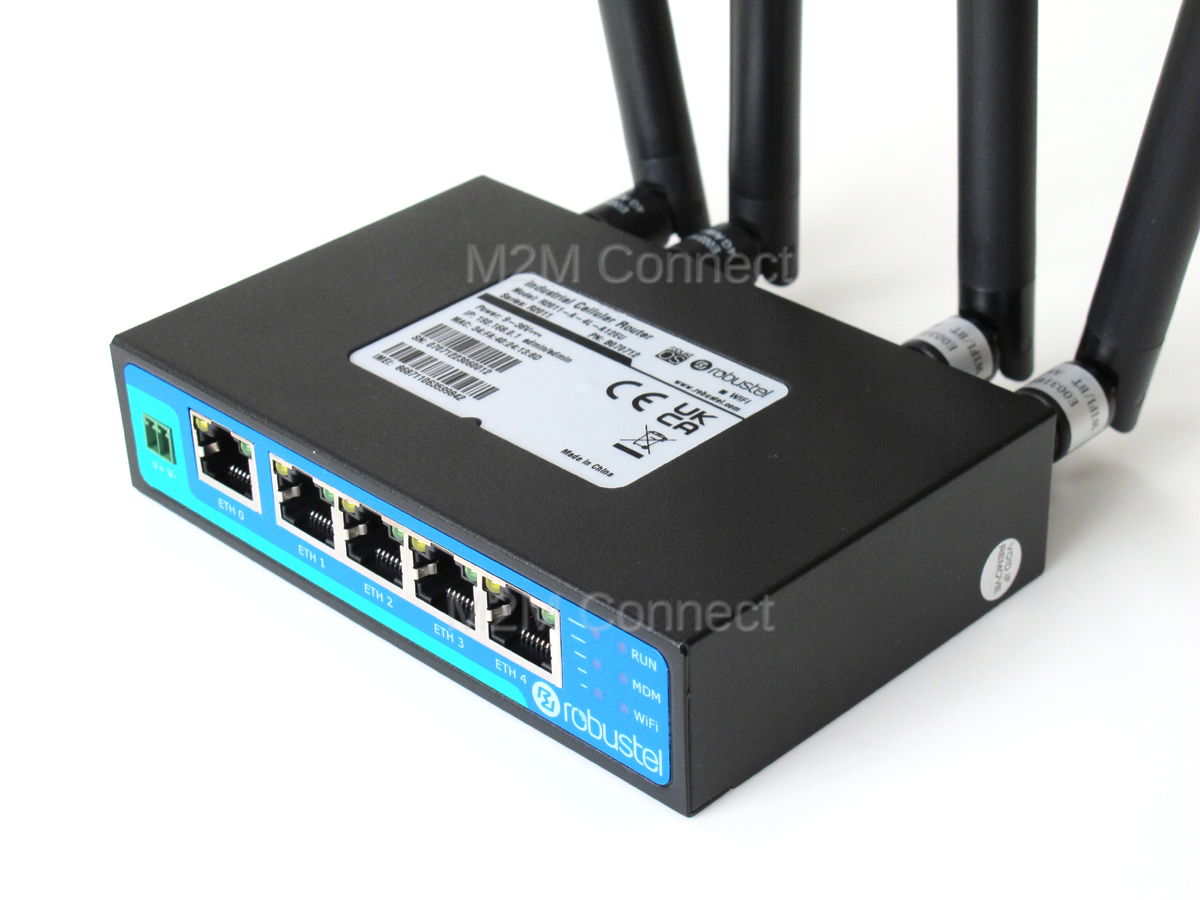

Side view of the Robustel 4G LTE Wireless Router showing all 5 Ethernet ports and antennas included in the shipping packageThe Robustel R2011 is a versatile Industrial Cellular 4G Gateway with five Ethernet ports, dual SIM capability and a range of advanced functions for mission critical IoT or M2M applications.

The Ethernet ports (one with optional 802.3at PoE input) plus Wireless-LAN 802.11 b/g/n are highly configurable & can be configured as 5 x LAN or as 4 x LAN + 1 x WAN to suit applications requiring flexible, high performance & extendability.

With security features including Firewalls and multiple VPNs to deliver secure, dependable connectivity, the R2011 is suitable for demanding applications in industrial monitoring, retail & commerce where cost of ownership is paramount.

R2011 includes Robustel’s RCMS free router monitoring service allowing users to see location, data usage, signal strength, current network and much more detail for all of their routers quickly and simply.

General Features
  • Power Input voltage range: 9.0 to 36 V D.C. via screw-locked 2-pin 3.5 mm female socket. 48 to 57 V. D.C. via Ethernet PD / PoE (optional, 802.3at PD)
  • Solid Metal case construction, Operating Temperature Range: -35 to + 75 ″C
Interfaces
  • Five 10/100Mbs Ethernet ports, configurable as bridged or independent networks.
  • Ethernet 0 can be configred as LAN or WAN
  • 802.11 b/g/n 'Wi-Fi' supporting AP and Client modes
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer
  • VPN Tunnels: IPsec/OpenVPN//GRE/WireGuard + others can be uploaded
  • Auto reboot - Periodic/Timed/via SMS
  • Flexible Management methods: Web/CLI/SNMP/SMS & RCMS cloud platform
  • Approval & Certification: CE, RoHS 2.0, RCM, WEEE
Downloads R2011 Datasheet R2011 Hardware Guide R2011 User Guide

Contact us for:

  • SDK and Applications information
  • Approvals & Network certification information
R2011 Front View showing 5 ehternet ports and power connector positioning to the left hand side R2011 Front View showing the 4 included antennas and power connector plug R2011 Rear panel close-up R2011 Rear panel close-up of the SIM card holder and antenna connections with labelling clearly shown

Robustel EG51xx – Industrial Edge Computing Gateways

Robustel’s EG51xx series are a new generation of industrial edge computing gateways, supporting global 5G/4G/3G/2G networks for cellular backhaul, with a fully-fledged Debian Operating System able to support thousands of existing or new ARMv7 (RPi compatible) based applications.

The EG51xx series takes the on-board computing power to the next level, with Support for Docker for easy deployment of applications and all the benefits of RobustOS and ‘RobustOS Pro’ – Robustel’s latest router OS with enhanced cybersecurity, advanced GUI and a myriad of software features including VPNs, Smart Roaming, SMS remote control and more.

General Features
  • Highly stable 5G(EG5120)/4G/3G/2G cellular connectivity with global band coverage
  • High performance high-speed computing engine with 8/16 GB eMMC Flash for running complex customer applications
  • ‘Docker’ containerisation supported
  • Full metal housing & wide operating temperature range for industrial applications
Interfaces
  • 2 x 10/100Mb Ethernet Ports. Optional: 802.11ac Wi-Fi ( suppors AP & Client modes) + Bluetooth (BT 5.3 compliant)
  • 2x RS232/RS485 (software configurable) ports for + 2 x DI & 2 x DO for simple monitoring and control
Software and other features
  • Full Modbus support, MQTT transfer to mainstream cloud platforms & multiple VPN options
  • Approvals & Certifications, supports Robustel's RCMS cloud platform for effective management of device fleets
Downloads

EG5100 Datasheet (792MHz 8GB eMMC Flash)

EG5120 Datasheet (1.6GHz, 16GB eMMc Flash)

Contact us for:

  • Approvals & Network certification information
  • Further information once available

Robustel R1520 – Advanced Compact 4G IoT Router

Image or Robustel R1520 Router with 4 LAN, Wi-Fi, Serial interfaces plus GPS receiver and analog plus digital General purpose input and outputs.

The R1520 is a highly flexible dual-SIM industrial 4G/LTE router. It uses the same Linux-based OS & user interface with a configurable link-manager to provide stable & dependable back-haul connectivity over Cellular, Wi-Fi or LAN.

The R1520 is ideal for cost-conscious applications requiring a flexible, highly reliable cellular router in a compact housing. To further simplify and support deployment of IoT and sensor applications the R1520 includes both digital and analog inputs and a digital output.

The User Interface is really simple to configure for rapid test & deployment. It includes VPN's, user-Apps and multiple monitoring & management options including Robustel's free RCMS cloud service. With an optional GPS receiver & PoE opertaion, the R1520 is our most highly specified cost-effective solution for industrial automation and IoT applications.

General Features
  • Multi-band 4G/LTE for pan-European deployment. Automatic fallback to 3G or 2G
  • Power Supply: Input voltage range 9 to 36V D.C.
  • Fire retardant plastic housing 105 x 90 x 46mm with optional Wall-mount or DIN rail bracket.
Interfaces
  • 5 x 10/100 Ethernet Ports, 4 x LAN + 1 x WAN. Digital Input + Output + Analog Input measuring 0 to 24v or 4 to 20mA
  • 2 Serial Ports via 3.5mm connector screw-terminals 1 x RS232 + 1 x RS485
  • Antenna Connections: 2 x Cellular 4G/LTE SMA(m), 2 x Wi-Fi 802.11b/g/n RP-SMA
Software and other features
  • LED indicators (Status, RSSI, Wi-Fi), Built-in hardware Watchdog & RTC with back-up battery
  • Auto reboot via Verified SMS or periodic-timed/
  • Configuration and management by https web server, over-the-air GUI or SSH, Optional Robustel RCMS
  • Approval & Certification: CE, FCC, RCM, RoHS, WEEE
Downloads

R1520 Datasheet

R1520 Global Datasheet

R1520 & R1520-Global User Guide

Note the R1520 standard packs contains 1 Cellular stubby Antenna and 1 Wi-Fi (WLAN) stubby antenna. Further options available.

Contact us for:

  • Approvals & Network certification information


Robustel R1511 – Compact 4G IoT Router with Serial I/F

Image of Robustel R1511 4G/LTE Cellular Wireless RouterThe R1511 is a cost & size-reduced version of Robustel's successful twin-Ethernet family of Industrial 4G/LTE Routers. It uses the same Linux-based OS & user interface with a configurable link-manager to provide stable & dependable back-haul connectivity over Cellular, Wi-Fi or LAN.

The R1511 is ideal for cost-conscious markets where a flexible, highly reliable cellular router is required in a compact housing or un-cased to further reduce size & cost.

The User Interface is really simple to configure for rapid test & deployment. It includes VPN's, user-Apps and multiple monitoring & management options including Robustel's free RCMS cloud service. The R1511 includes a serial interface making the most cost-effective solution for remote industrial, automation and IoT applications requiring Serial and LAN connectivity.

General Features
  • Multi-band 4G/LTE for pan-European deployment or other regions on request. Automatic fallback to 3G or 2G.
  • Power Supply: Input voltage range 9 to 26V D.C., Operating Temperature Range: -25 to +70 C
  • Wall-Mountable housing 91.5 x 91.5 x 30.8mm with optional DIN rail bracket.
Interfaces
  • 2 x 10/100 Ethernet Ports, configurable as 2 x LAN or 1 x LAN + 1 x Serial interface (RS232 or RS485)
  • Antenna Connections: 2 x Cellular 4G/LTE SMA(m), 1 x Wi-Fi 802.11b/g/n RP-SMA + internal PCB antenna
Software and other features
  • LED indicators (Status, RSSI, Wi-Fi), Built-in hardware Watchdog & RTC for reliability
  • Auto reboot via Verified SMS or periodic-timed/
  • Configuration and management by https web server, over-the-air GUI or SSH, Optional Robustel RCMS
  • Approval & Certification: CE, RoHS, WEEE
Downloads

R1511 Datasheet

R1511 User Guide

Contact us for:

  • Approvals & Network certification information
Image of the Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity from above Image of the side of Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity showing SIM card slot Image of the front Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity


Robustel R1510 – Compact 4G IoT Router with Digital Input/Output

Image of Robustel R1510 4G/LTE Cellular Wireless RouterThe R1510 is a cost & size-reduced version of Robustel's successful twin-Ethernet family of Industrial 4G/LTE Routers. It uses the same Linux-based OS & user interface with a configurable link-manager to provide stable & dependable back-haul connectivity over Cellular, Wi-Fi or LAN.

The R1510 is ideal for cost-conscious markets where a flexible, highly reliable cellular router is required in a compact housing or un-cased to further reduce size & cost.

The User Interface is really simple to configure for rapid test & deployment. It includes VPN's, user-Apps and multiple monitoring & management options including Robustel's free RCMS cloud service. There's also a digital input and output for economic monitoring & control via SMS or Email, making the R1510 a very cost-effective solution for remote industrial, automation and IoT applications.

General Features
  • Multi-band 4G/LTE for pan-European deployment. Automatic fallback to 3G or 2G
  • Power Supply: Input voltage range 9 to 26V D.C., Operating Temperature Range: -25 to +70 C
  • Wall-Mountable housing 91.5 x 91.5 x 30.8mm with optional DIN rail bracket.
Interfaces
  • 2 x 10/100 Ethernet Ports, configurable as 2 x LAN or 1 x LAN + 1 x WAN. 1 x Digital Input + 1 x Digital Output
  • Antenna Connections: 2 x Cellular 4G/LTE SMA(m), 1 x Wi-Fi 802.11b/g/n RP-SMA + internal PCB antenna
Software and other features
  • LED indicators (Status, RSSI, Wi-Fi), Built-in hardware Watchdog & RTC for reliability
  • Auto reboot via Verified SMS or periodic-timed/
  • Configuration and management by https web server, over-the-air GUI or SSH, Optional Robustel RCMS
  • Approval & Certification: CE, RoHS, WEEE
Downloads

R1510 Datasheet

R1510 User Guide

Contact us for:

  • Approvals & Network certification information
Image of the Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity from above Image of the side of Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity showing SIM card slot Image of the front Robustel R1510 4G/LTE Wireless Router with twin Ethernet plus Wi-Fi LAN Connectivity


Robustel R1500 – 4G IoT Gateway

The R1500 industrial cellular IoT gateway supports 4G-LTE, 3G & 2G networks to provide high speed wireless access for serial and Ethernet interface devices. It uses the same Linux-based OS & configurable link-manager to provide stable & dependable back-haul connectivity, as all other Robustel devices

The R1500 is ideal for cost-conscious applications where a flexible, highly reliable cellular gateway is required in a compact housing. It includes multiple serial interfaces with full flow control as well as an Ethernet interface for LAN devices.

The User Interface is really simple to configure for rapid evaluation & deployment. It includes VPN's and multiple monitoring & management options including Robustel's free RCMS cloud service making the R1500 a very cost-effective solution for remote industrial, automation and IoT applications.

General Features
  • Multi-band 4G/LTE for pan-European deployment. Automatic fallback to 3G or 2G
  • Power Supply: Input voltage range 9 to 36V D.C.
  • Dimensions: 118 x 97.5 x 28.5mm with optional Wall-Mount or DIN rail brackets.
Interfaces
  • 1 x 10/100 Ethernet Port, configurable with DHCP or Fixed IP
  • 2 x DB-9 Serial Port, with RTS, CTS, DSR & DTR
  • Antenna Connections: 2 x Cellular 4G/LTE SMA(m)
Software and other features
  • LED indicators (Status, 3xRSSI, USR, MDM), Built-in hardware Watchdog & RTC for reliability
  • Auto reboot via Verified SMS or periodic-timed/
  • Configuration and management by https web server, over-the-air GUI or SSH, Optional Robustel RCMS
  • Approval & Certification: CE, Telec, RCM, RoHS, WEEE
Downloads

R1500 Datasheet

R1500 User Guide

Contact us for:

  • Approvals & Network certification information


Robustel R5020 – High Speed Smart 5G Router

Image of R5020 5G Industrial Wireless Router

The R5020 is a 5G capable router supporting global 5G, 4G and 3G bands. It leverages the tried and tested high performance CPU platform and RobustOS – a mature and stable Operating System developed in-house by Robustel. The clear and easy to use management interface with configurable link-manager for stable & dependable connectivity allows users to define primary and failover back-haul routing over Cellular, Wi-Fi or LAN.

For industrial applications the R5020 includes twin serial, digital input & outputs. There is support for PoE 803.3at on Eth0 to power the device or vehicle ignition sensing on an alternative in-vehicle version to protect vehicle batteries. The device also includes 2.5GHz & 5Ghz W-LAN (AP or Client) & GNSS location input. Support for various VPNs including IPSEC, DMVPN and Open VPN is included.

General Features
  • Multi-band 5G Non-Standalone or Standalone operation
  • Automatic fallback to Global 4G or 3G
  • Power Supply: Input voltage range 9 to 36V D.C.(10 to 30V DC with Ignition sensing)
  • Full metal housing 125 x 100 x 48 mm with optional Wall-mount or DIN rail bracket.
Interfaces
  • 4 x 10/100/1000 Ethernet Ports, Digital Input + Output
  • 1x RS232 + 1x RS485 Serial Ports via 3.5mm connector screw-terminals
  • Antenna Connections: 4 x Cellular 5G SMA(m) inc. GPS multtplexing, 2 x Wi-Fi 802.11a/b/g/n/ac RP-SMA (2.4 + 5 GHz)
Software and other features
  • LED indicators (Status, RSSI, Wi-Fi), Built-in hardware Watchdog & RTC, Auto reboot via Verified SMS or periodicaly
  • Configuration and management by https web server, over-the-air GUI or SSH, Optional Robustel RCMS
  • Approval & Certification: CE, FCC, RCM, RoHS, WEEE, E-Mark(vehicle version)
Downloads

Robustel R5020 Datasheet_v.1.0.2

Robustel R5020 User Guide_v.1.0.0

Contact us for:

  • Approvals & Network certification information



Robustel R3000-Lite – 4G / 3G Routers

Robustel GoRugged R3000-Lite is a rugged Cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. The R3000 includes both Ethernet LAN and flexible Serial interface (RS232 / RS485 including Modbus support).

With a clear, easy to use http-web user interface, configuration and management are performed quickly and simply. Furthermore, secure over-the-air access and RobustLink cloud support further extend management and monitoring options for your complete fleet of devices.

R3000-Lite includes Dual-SIM capability with switch-over policy for managed, continuous connectivity. Security features include Firewalls and multiple VPN support, delivering secure dependable connectivity for M2M, Metering and Telemetry & POS applications.

General Features
  • Three models available: 4G LTE, 3G HSPA+, 3G HSDPA
  • Power Supply: Input voltage range 6.0 to 26 V D.C.
  • Solid Metal case construction, Operating Temperature Range: -40 to + 85 Deg.C (3G versions) -30 to +75 (4G)
Interfaces
  • Ethernet port x1 10/100Mbs
  • Serial port configurable as RS232 or RS485 with Modbus RTU/ASCII to Modbus TCP
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer
  • VPN Tunnel: IPsec/OpenVPN/PPTP/L2TP/GRE
  • Auto reboot via SMS/Caller ID/3 x Timed
  • Flexible Management methods: Web/CLI/SNMP/RobustLink
  • Supports RobustLink and Robust VPN
  • Approval & Certification: CE, R&TTE, RoHS, RCM, RoHS, WEEE


Robustel R3000 – 4G / 3G Routers

Robustel GoRugged R3000 is a rugged cellular router offeringR3000 image state-of-the-art mobile connectivity for machine to machine (M2M) applications. The R3000 has two independent Ethernet LAN connectors configurable as LAN, WAN or WAN with fail-over to Cellular.

Configuration and management are simple with the latest web interface, accessible over the air. Furthermore RobustLink cloud-based services can monitor, configurable and forward alerts for your whole fleet of devices.

Optional Wi-Fi operates as a WAN client or AP, optional GPS provides accurate time and location for host equipment and cloud-based services. R3000 also features Dual-SIM for continuous cellular connections, multiple VPN support, GPIOs and many other configurable features.

With Vodafone approval, AT&T and other network certifications R3000 delivers secure dependable connectivity for world-wide applications.

General Features
  • Three base models: 4G LTE, 3G World-wide, 3G Quad-band inc. EU
  • Optional GPS. Optional WLAN can operate as Client or WiFi AP mode
  • Power Supply: Input voltage range 9 – 60 V D.C. with screw-lock connector
  • Solid Metal case construction, Operating Temperature Range: -40 to + 85 Deg.C
Interfaces
  • Twin Ethernet ports, Two serial ports each configurable as RS232 or RS485
  • USB 2.0 Host interface
  • Two isolated Digital Inputs and Two Outputs, remotely monitored/controlled
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer, SMS + Call + Timed Re-boot
  • VPN Tunnel: IPsec/OpenVPN/PPTP/L2TP/GRE
  • Management: Web, CLI, SNMP v1/v2/v3, SMS, RobustLink
  • Serial Port configurable as TCP Client/Server, Modbus Support, Virtual COM port
  • Supports RobustLink and Robust VPN
Downloads

Robustel R3000 Data Sheet

Robustel R3000 User Guide

R3000_Frequently Asked Questions_v.2.0.1

Contact us for:

  • Applications & supporting information
  • Software Developer Kit information
  • Approvals & Network certification information


Robustel R3000-LG – LoRa-WAN Gateway

R3000-LoRa Gateway imageRobustel GoRugged R3000-LG is a rugged cellular gateway with integrated LoRaWAN wireless communications technology. With state-of-the-art mobile wireless, and two independent Ethernet LAN connectors configurable as LAN, WAN or WAN with fail-over to Cellular, the device provides backhaul to cloud platforms for all types of LoRa application sensors.

The powerful Gateway device uses Robust-OS, a Linux-based operating system for configuration and management via a clean and simple web interface, accessible over the air. Robust-OS offers an SDK for users to develop and run custom applications using C, Python or Java on the device.

R3000-LG features Dual-SIM for continuous cellular connectivity, support for RobustLink cloud-based services, multiple VPNs, digital inputs and many other configurable features, with optional GPS to provide accurate time and location for host equipment.

General Features
  • Two base models: 4G LTE or 3G HSPA+, each with integrated LoRa-WAN Transceiver
  • Optional GPS/GLONASS receiver.
  • Power Supply: Input voltage range 9 – 60 V D.C. with screw-lock connector
  • Solid Metal case construction, Operating Temperature Range: -40 to + 75 Deg.C
Interfaces
  • Twin Ethernet ports + Serial port configurable as RS232 or RS485
  • USB 2.0 Host interface
  • Two isolated Digital Inputs, with remotely monitoring
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer, SMS & Call & Timed Re-boot
  • VPN Tunnel: IPsec/OpenVPN/GRE
  • Management: Web, CLI, SMS, RobustLink cloud service
  • Serial Port configurable as TCP Client/Server, Modbus Support, Virtual COM port
  • Supports RobustLink and Robust VPN
Downloads

Robustel R3000-LG Datasheet

Robustel R3000-LG Complete Outdoor Gateway Datasheet

Robustel R3000 LG User Guide

Loriot Specific App

Robustel-LORIOT-App-Datasheet-V2

LORIOT_App_Config_Guide_V2

Contact us for:
  • Applications, Approvals & supporting information
  • Software Developer Kit information


Robustel R3000-Quad – 4G / 3G Routers

Robustel GoRugged R3000 Quad is a versatile,R3000 Quad image easy-to-deploy, rugged and reliable VPN gateway designed for harsh environment, providing seamless, secure, fast wireless connectivity to M2M/IoT applications.

The R3000-Quad has four two independent Ethernet LAN connectors configurable as LAN, WAN or WAN with fail-over to Cellular.

Configuration and management are simple with the latest web interface, accessible over the air and via RobustLink cloud-based services which can monitor, configurable and forward alerts for your whole fleet of devices.

Optional Wi-Fi operates as a WAN client or AP, optional GPS provides accurate time and location for host equipment and cloud-based services. R3000-Quad features Dual-SIM for continuous cellular connections, multiple VPN support, GPIOs and many other configurable features.

General Features
  • Three base models: 4G LTE, 3G World-wide inc North America, 3G Quad-band inc. EU
  • Optional GPS. Optional WLAN can operate as Client or WiFi AP mode
  • Power Supply: Input voltage range 9 – 60 V D.C. with screw-lock connector
  • Solid Metal case construction, Operating Temperature Range: -40 to + 85 Deg.C
Interfaces
  • Quad 10/100 Ethernet port: Operate as 4 LAN or 3 LAN + 1 WAN
  • Serial Interface (RS232 Version or RS485 Version with Modbus Support)
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer, SMS + Call + Timed Re-boot
  • VPN Tunnel: IPsec/OpenVPN/PPTP/L2TP/GRE
  • Management: Web, CLI, SNMP v1/v2/v3, SMS, RobustLink. Re-Boot by Verified SMS or Caller & Timed
  • Serial Port configurable as TCP Client/Server, Modbus Support, Virtual COM port
  • Supports RobustLink and Robust VPN
Downloads

R3000 Quad Datasheet

R3000 Quad User Guide

R3000 Quad Installation and Configuration

Contact us for:

  • Applications & supporting information
  • Software Developer Kit information
  • Approvals & Network certification information


Robustel M1200 – Smart 3G / 4G Gateways

Robustel's Smart Industrial M1200 M1200 Smart Gateway Imageis a compact cellular gateway with Serial interface. It is ideal for cost-conscious markets requiring a flexible, high reliability, solution for remote device connectivity in M2M applications.

The M1200 automatically opens and maintains an IP connection according to a defined policy. Data is transparently exchanged between connected equipment and a remote server, with no AT Commands required.

The Serial interface supports either RS232 or RS485, including support for Modbus gateway mode (Modbus RTU to Modus over TCP). The USB interface provides a https server for device configuration via PC web-browser. Over-the-air management is possible via optional RobustLink service.

Additionally the M1200 has one digital input and two digital outputs, which can be used for alarms and simple control of external devices. The M1200 delivers a dependable, very cost-effective remote connectivity solution for industrial automation and IoT applications that is simple to configure, deploy and maintain.

General Features
  • Two models are available: Quad-band 3G (850/900/1900/2100 MHz) & Multi-band 4G/LTE. Automatic fallback to 3G or 2G
  • Auto GPRS/UMTS connection without AT-Commands
  • Power Supply: Input voltage range 9 to 36V D.C.
  • DIN rail or Wall mount options, Operating Temperature Range: -40 to + 85 ″C
Interfaces
  • 2 x Serial interface, configurable RS232 (4-wire) + RS485
  • USB port for easy configuration by PC
  • 2 x Digital Inputs + 1 x Digital Output, signalling and managed by SMS for remote detection and control
Software and other features
  • LED indicators (Status and RSSI), Built-in RTC & Watchdog for reliability
  • Various dial-up policies: Always Online/Connect On Demand.
  • Auto reboot via Verified SMS or periodic-timed/
  • Configuration and management by https web server via local USB connection, over-the-air or optional RobustLink Service
  • Approval & Certification: CE, RoHS, R&TTE, WEEE
Downloads

M1200 Datasheet

M1200 User Guide

Contact us for:

  • Approvals & Network certification information



Robustel R2000 Dual – 4G / 3G Routers

The Robustel GoRugged R2000 Dual range of industrial 4G / 3G Cellular routersR2000 Dual image deliver highly dependable connectivity for mission-critical applications where a Dual-Radio high performance extendable solution is required.

They feature two wireless modules configurable for failover or simultaneously connected operation. Together with four highly flexible Ethernet LAN ports with PoE, an Ethernet WAN port and optional Wireless-LAN, R2000 Dual delivers a flexible configuration for demanding applications where continuous wireless connectivity is paramount.

The R2000 Dual offers additional flexibility by supporting user-uploaded applications. Applications can be created by customers using a free SDK or selected from pre-written apps from Robustel, such as 'Wi-Fi Landing page' for the Wi-Fi AP.

With many network APNs pre-installed and Robustel's latest easy to use http-web interface, configuration and management are performed quickly and simply.

General Features
  • Two models available: 4G LTE, 3G HSPA+
  • Optional Wireless LAN support Wi-Fi Access Point and Client Modes
  • Power Supply: Input voltage range 6.0 to 26 V D.C. or 48 to 57 V D.C. PD / PoE (optional)
  • Solid Metal case construction, Operating Temperature Range: -20 to + 65 ″C
Interfaces
  • Two 10/100Mbs Ethernet ports, configurable as bridged or independent networks
  • Ethernet 1 functions as LAN, Eth 2 as LAN, or WAN with fail-over support and 802.3at PD feature (PoE)(
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog, Timer
  • VPN Tunnel: IPsec/OpenVPN//GRE others may be uploaded
  • Auto reboot via SMS/Timed
  • Flexible Management methods: Web/CLI/SNMP optional
  • Approval & Certification: CE, RoHS, RCM, WEEE
Downloads

Robustel R2000 Dual Data Sheet_v.1.0.8

Robustel R2000 Dual User Guide_v.1.0.7

Contact us for:

  • SDK and Apps information
  • Approvals & Network certification information




Robustel R3010 Industrial IoT Gateway

Image of the R3010 IoT Gateway

Robustel R3010 is an industrial Gateway designed for elevator and lift monitoring applications, providing reliable and secure remote access via state-of-the-art mobile wireless technology. The R3010 features multiple serial interfaces, audio interface for emergency calls and two independent Ethernet LAN interfaces.

The powerful Gateway uses Robust-OS, a Linux-based operating system for configuration and management via a clean and simple web interface, accessible over-the-air. Robust-OS allows users to develop and run custom applications using C, Python or Java on the device.

The R3010 includes support for RobustLink cloud-based services, multiple VPNs and many other configurable features.

General Features
  • Fully embedded Cellular Wireless 4G LTE connectivity
  • Power Supply: Input voltage range 9 – 26V D.C.
  • Solid Metal case construction, Operating Temperature Range: -40 to + 75 Deg.C
Interfaces
  • Twin Ethernet ports +
  • Emergency call and respond via voice interface
  • Serial RS232 port + CAN-bus + RS485 port with Modbus Gateway and BACnet protocol support
Software and other features
  • LED indicators (including RSSI), Built-in RTC, Watchdog Timer, SMS & Call & Timed Re-boot
  • VPN Tunnel: IPsec/OpenVPN/GRE
  • Management: Web, CLI, SMS, RobustLink cloud service
  • Supports RobustLink and Robust VPN
Downloads

Robustel R3010 Data Sheet

Robustel R3010 User Guide

Contact us for:

  • Applications & supporting information
  • Software Developer Kit information
  • Approvals & Network certification information

Image for linking to Robustel Starter Kits

Image for linking to Robustel Starter Kits

Image for linking to Robustel Starter Kits

Cloud Services

RobustLink Device Management and VPN Services

Robustel Cloud Manager Service (RCMS) is Image of PC and RCMS ScreenshotsRobustel's device management platform. RCMS is designed to provide rapid device deployment and extensive management through an intuitive user interface and on-boarding processes. It includes a streamlined VPN solution for easily accessing data from your remote machines without any of the inricacies involved with VPN service provision and management.

Available as a hosted Cloud service from Robustel or a locally installed (Stack) service, RCMS connects you to the Industrial Internet of Things, with a flexible, secure and cost effective way to collect, store and distribute device data.

General Features
  • Supports all Robustel Devices running Rubust-OS Operating System
  • Fleet Status Monitoring and optional devide Configuration capabilities
  • Devices can be grouped as required for rapid identification and controlled access
  • Users can be grouped with managed access rights to device groups, allowing for controlled customer access
  • Device Dash-board with full status info, location, SIM traffic and current + historical signal strength
  • Assignable user access control and management rights
  • Various account levels and capabilites, fully extendable as users' business and requirements grow
  • Optional VPN server for remote machine access and secure data transfer without fixed IP SIMs
  • No specific SIM card requirements, connects via any active WAN (internet) connection
Chart showing key features of Robustel's RCMS cloud service for wireless routers

RCMS is available as a Cloud Service provided by Robustel, hosted on Microsoft Azure Servers located in the EU & other regions globally. Alternatively private insatllations can be locally hosted by customers (Stack) service.

Available as a free-of-charge Monitoring-Level solution (registration required) or as a paid-for service with Device Management & integrated VPN services. The paid-for service is pre-paid and allows allocating to specific devices on a per-device-per-month basis directly by users

Futher details & demonstration available from M2M Connect .

Documentation

RCMS Brochure

RCMS Cloud User Guide
